and 3, 6 or 12-channel configurations

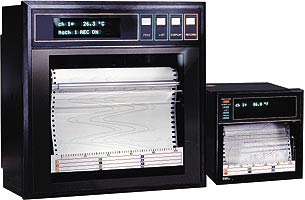

The 100mm Fuji Electric PHC strip chart recorder offers brilliant six color recording utilizing Fuji’s patented inkjet mechanism. Tiny piezo elements electronically dispense small dots of 0.3mm diameter colored ink onto the chart paper, tracing vibrant trend lines and printing sharp alphanumeric characters.
This technology, previously available on expensive printers only, now comes in the Fuji Electric PHC strip chart recorder at an affordable price - one that falls below the cost of most dot-matrix type printers. If you note the difference in print quality between the dot-matrix and the inkjet typefaces, you’ll conclude there’s simply no reason to use a dot-matrix type recorder anymore.
The Fuji Electric PHC strip chart recorder utilizes inkjet cartridges, which can have a long life of up to 6 months of continuous operation. Each channel is assigned its own color, and reports generated in reference to that channel are printed in the corresponding color. As this method of printing requires only one mechanism, the Fuji Electric PHC strip chart recorders require fewer moving parts than conventional recorders - that means years of extremely reliable, trouble-free operation for you. With a depth of less than 8”, the 100 mm Fuji Electric PHC strip chart recorder ideal for installation in shallow panels.
The 100mm Fuji Electric PHC strip chart recorder comes in three or six channels. (The 180mm PHA comes in six or twelve channels.) As each channel has its own 16-bit A/D converter, the Fuji Electric PHC strip chart recorder offers high speed sampling of the input signal. These inputs include most thermocouple and RTD types plus a wide range of DC currents/voltages; each input can be scaled for your particular application from the recorder’s front panel. With advanced math functions, the Fuji Electric PHC strip chart recorder provides filtering, square root extraction, subtraction, and scaling for each channel.
Furthermore, Fuji Electric PHC strip chart recorders are fully programmable from their easy-to-read, fluorescent front panels for a variety of parameters such as:
- Pass Code
- Main and Sub Chart Speeds
- Record Mode — Trend/Logging
- Recording Range
- Input Signal
- Tag Number
- Communication Parameters
- Ink Monitor Status
- Language (English, French, or German)
- List Print Request
- Daily Report, Date and Time, and Alarm Settings
- Illumination Status
- And More…
One of the most powerful features of the Fuji Electric PHC chart recorder is its ability to create a full complement of status reports - scheduled or on demand. You may specify daily and summation reports for any period of time from one to 24 hours. These reports are printed in crisp digital type and provide you with important information such as:
- Periodic Data for Each Channel
- Totalized Values for Each Channel
- Maximum and Minimum Recorded Value for Each Channel and Time of Occurrence
- Average Value for Each Channel
Continuous trace or dotting print versions of the Fuji Electric PHC chart recorder are available. The continuous trace and dotting models are nearly identical in features except that the dotting recorder has a slower sample time and has limited scale print or periodic printout capabilities. Therefore, the dotting recorder carries a lower price. Both models of the Fuji Electric PHC chart recorder are capable of data logging in addition to trend recording and can transmit data via an RS-485 communications link.
Model PHA/PHC PDF spec sheetCall us at 480-947-9003 for more information.
